SEMI-FLEXIBLE PTFE COAXIAL CABLE

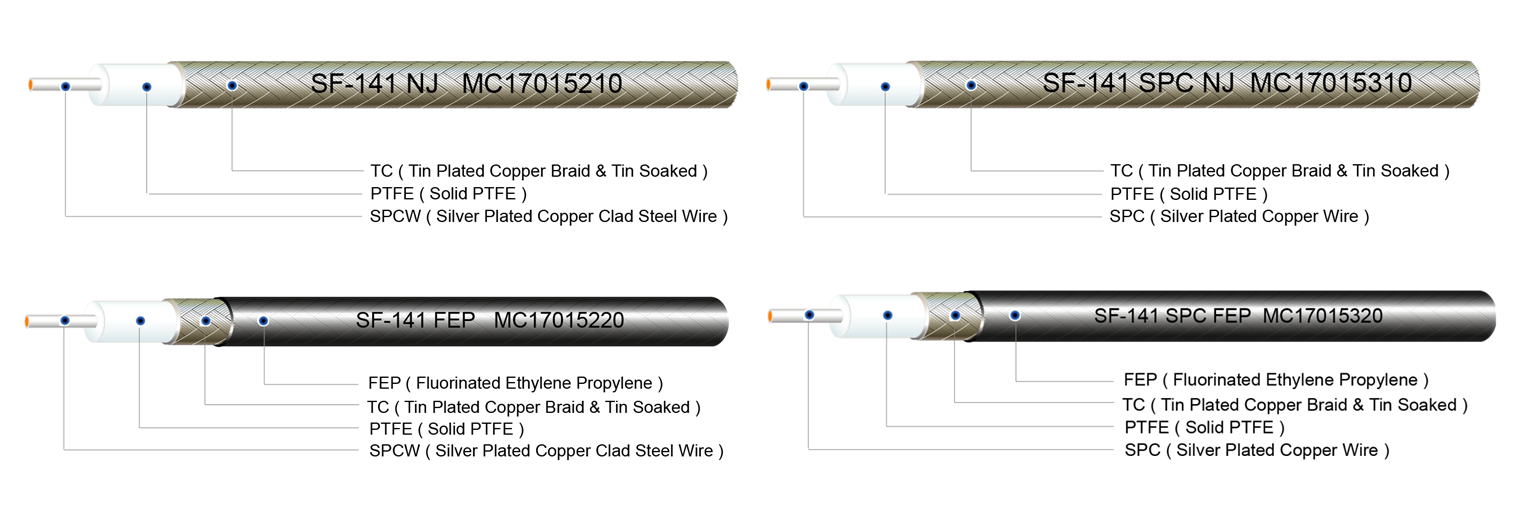

Physical Structure
SF-047
SF-085
SF-75085
SF-141
SF-250
Replacement for
SC405 Series
SC75086 Series
SC402 Series
SC401 Series
Center Conductor
Material
SPCW ( : SCCS )
SPCW ( : SCCS )
SPCW ( : SCCS )
SPCW ( : SCCS )
SPCW ( : SCCS )
SPC
SPC
SPC
SPC
SPC
Structure
Solid
Solid
Solid
Solid
Solid
Diameter
0.29 mm
0.011 inch
0.51 mm
0.0201 inch
0.29 mm
0.0113 inch
0.94 mm
0.037 inch
1.63 mm
0.064 inch
Dielectric
Solid PTFE
0.94 mm
0.037 inch
1.65 mm
0.065 inch
1.65 mm
0.065 inch
2.98 mm
0.117 inch
5.31 mm
0.209 inch
Outer Conductor
Tin Plated Copper Wire Braid
& Tin Soaked
1.19 mm
0.047 inch
2.16 mm
0.085 inch
2.16 mm
0.085 inch
3.58 mm
0.141 inch
6.35 mm
0.250 inch
Jacket
Non Jacket
1.19 mm
0.047 inch
2.16 mm
0.085 inch
2.16 mm
0.085 inch
3.53 mm
0.139 inch
6.22 mm
0.245 inch
FEP Jacket
Custom
Custom
2.50 mm
0.098 inch
2.50 mm
0.098 inch
4.14 mm
0.163 inch
6.68 mm
0.263 inch
HF Jacket
Custom
Custom
3.20 mm
0.126 inch
3.20 mm
0.126 inch
4.60 mm
0.181 inch
7.49 mm
0.295 inch
PVC Jacket
Custom
Custom
3.20 mm
0.126 inch
3.20 mm
0.126 inch
4.60 mm
0.181 inch
7.49 mm
0.295 inch
Weight
Non Jacket
5.3 Kg/Km
1.6 Kg/1000ft
16.0 Kg/Km
4.9 Kg/1000ft
20.5 Kg/Km
6.2 Kg/1000ft
36.0 Kg/Km
11.0 Kg/1000ft
114.0 Kg/Km
34.7 Kg/1000ft
FEP Jacket
Custom
Custom
22.0 Kg/Km
6.7 Kg/1000ft
21.0 Kg/Km
6.4 Kg/1000ft
44.0 Kg/Km
13.4 Kg/1000ft
130.0 Kg/Km
39.6 Kg/1000ft
HF Jacket
Custom
Custom
22.0 Kg/Km
6.7 Kg/1000ft
21.0 Kg/Km
6.4 Kg/1000ft
44.0 Kg/Km
13.4 Kg/1000ft
130.0 Kg/Km
39.6 Kg/1000ft
PVC Jacke
Custom
Custom
22.0 Kg/Km
6.7 Kg/1000ft
21.0 Kg/Km
6.4 Kg/1000ft
44.0 Kg/Km
13.4 Kg/1000ft
130.0 Kg/Km
39.6 Kg/1000ft
Temperature Range (℃)
Non Jacket
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
FEP Jacket
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
-55 ~ +165℃
HF Jacket
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
PVC Jacke
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
-55 ~ +85℃
Minimum Bend Radius
Non Jacket
3.2 mm
0.13 inch
6.4 mm
0.25 inch
6.4 mm
0.25 inch
10.9 mm
0.43 inch
19.1 mm
0.75 inch
FEP Jacket
Custom
Custom
10.9 mm
0.43 inch
10.9 mm
0.43 inch
17.8 mm
0.70 inch
25.4 mm
1.00 inch
HF Jacket
Custom
Custom
11.4 mm
0.45 inch
11.4 mm
0.45 inch
19.1 mm
0.75 inch
31.8 mm
1.25 inch
PVC Jacke
Custom
Custom
11.4 mm
0.45 inch
11.4 mm
0.45 inch
19.1 mm
0.75 inch
31.8 mm
1.25 inch
Electrical Data
SF-047
SF-085
SF-75085
SF-141
SF-250
Impedance (Ohms)
50 Ω
50 Ω
75Ω
50 Ω
50 Ω
Capacitance (pF/ft.)
95.1 pF/M
29.0 pF/ft
96.5 pF/M
29.4 pF/ft
62.3 pF/M
19.0 pF/ft
96.5 pF/M
29.4 pF/ft
96.5 pF/M
29.4 pF/ft
Velocity of propagation ( % )
70 %
70 %
70 %
70 %
70 %
Shielding effectiveness
> - 110dB
> - 110dB
> - 110dB
> - 110dB
> - 110dB
